Description

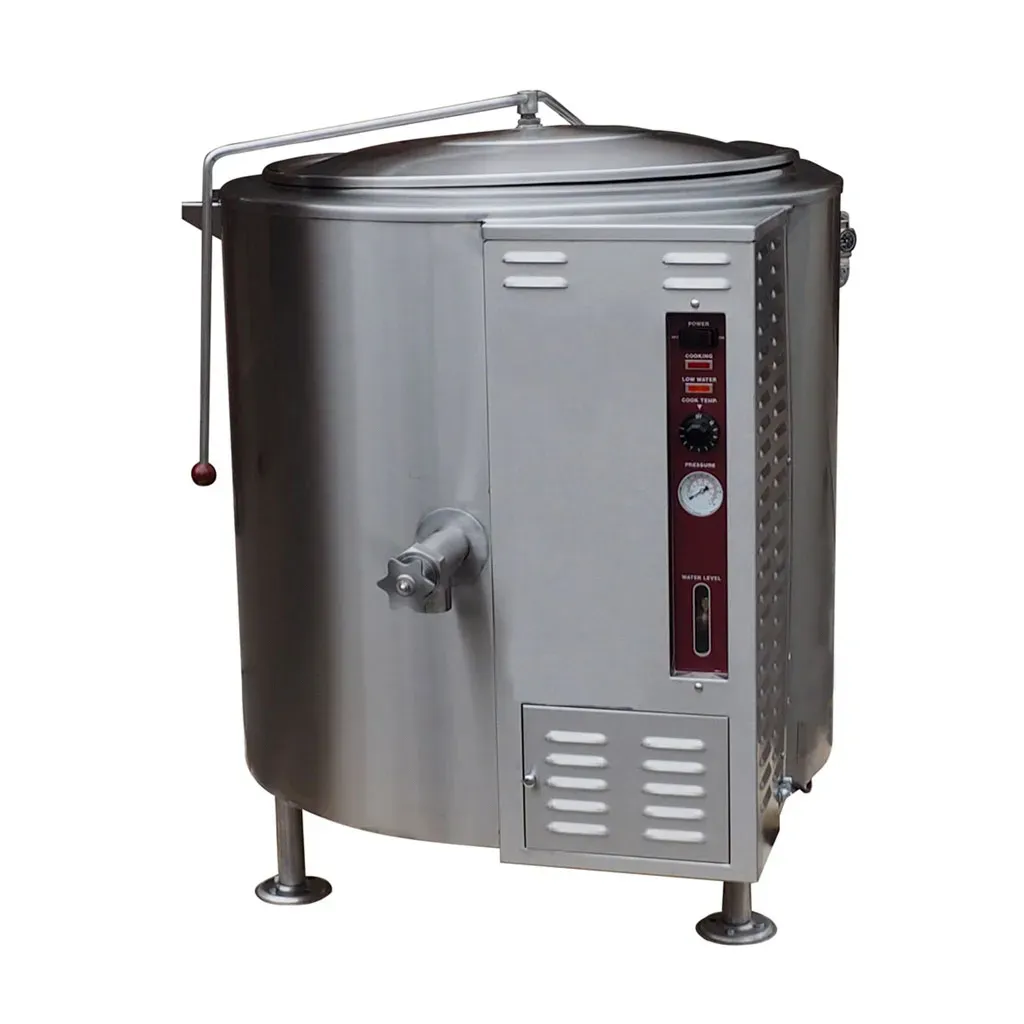

The GL-20E, GL-30E, GL-40E, and GL-60E kettles are designed for reliable performance and ease of use, featuring electronic ignition and a spring-assisted hinged cover for convenient operation. These kettles are constructed with a durable type 304 stainless steel exterior finished with a #4 sanitary finish and supported by 6” (152mm) stainless steel adjustable legs for stability and easy leveling. The interior of the kettle is crafted from a one-piece welded construction of type 316 stainless steel with a #4 sanitary finish. With 2/3 jacketed construction, the kettle ensures efficient heat distribution for consistent cooking results. A 2” (50 mm) tangent draw-off valve with strainer comes standard for easy draining. The recessed control panel, positioned on the front side of the unit for easy access and visibility, includes intuitive controls. Standard features include a direct immersion thermostat, water sight glass, cooking light, pressure gauge, and a low water indicator light. For safety, the kettle is equipped with a low water cut-off, pressure relief valve, pressure switch, and a 100% safety gas shutoff valve, ensuring safe and efficient operation. A faucet bracket is also included for added convenience.

Specifications

Gas Inlet Size	0.75 Inch
Number of Steam Kettles	1
BTU	100000 BTU
Voltage	115V
Phase	1PH
Kettle Capacity	30 Gallon
Capacity	30 gallon
Area (in)	35.5 in X 40.5 in X 39.5 in
Width	35.5"
Height	39.5"
Depth	40.5"
Safety and Compliance	CSA Flame, CSA Star, NSF
Design	Freestanding, Indoor Only
Power Type	gas
Steam Type	generator
Product Type	kettle
Base Configuration	Legs
Control Type	Manual
Plug Type	NEMA 5-15
Gas Type	Propane
Material	stainless steel
Steam Kettle Type	Standard
Tilt Mechanism	Stationary
Features	with 2/3 jacketed option
